NV-M Series
300W-6KW
Over Current Protection
Over Voltage Protection
Over Temperature Protection
Over Load Protection
Short Circuit Protection
Low Voltage Protection
Product Features
Super professional remote monitoring on APP and PC: convenient daily usage, smart large-scale aftersales without time and location limitation.
Built-in MPPT solar charge controller
Wide PV input voltage range (60V to 450V), minimum connect 2pcs PV panel, save installation cost.
Max 8 pcs in parallel, extend loading capacity to 49.6KW
Smart tuya communication bar(Easy management for users)
Built-in anti-dust kit for harsh environment, avoid short circuit.
High efficiency (max 97.5%), no-load loss less than 30W.
Run without battery
Combining solar system, AC utility, and battery power source to supply continuous power(10MS transfer time)
Dual back up load port(EPS port& smart port)
Support power the load and charge battery at the same time by 1.7 rates of Input Utility power
Overload, short circuit and Deep discharge protection of battery
Intelligent fan speed regulation, reduce noise and power consumption.
5 year warranty.
Applications of Inverters
1. Solar Power Generation: Converts the direct current (DC) produced by solar panels into alternating current (AC) for grid connection or self-use.
2. Electric Vehicles: Converts the DC from the battery into AC to drive the electric motor.
3. Household Appliances: Provides backup power during outages by converting DC from batteries into AC for home use.
4. Industrial Equipment: Supplies AC power to equipment that requires it.

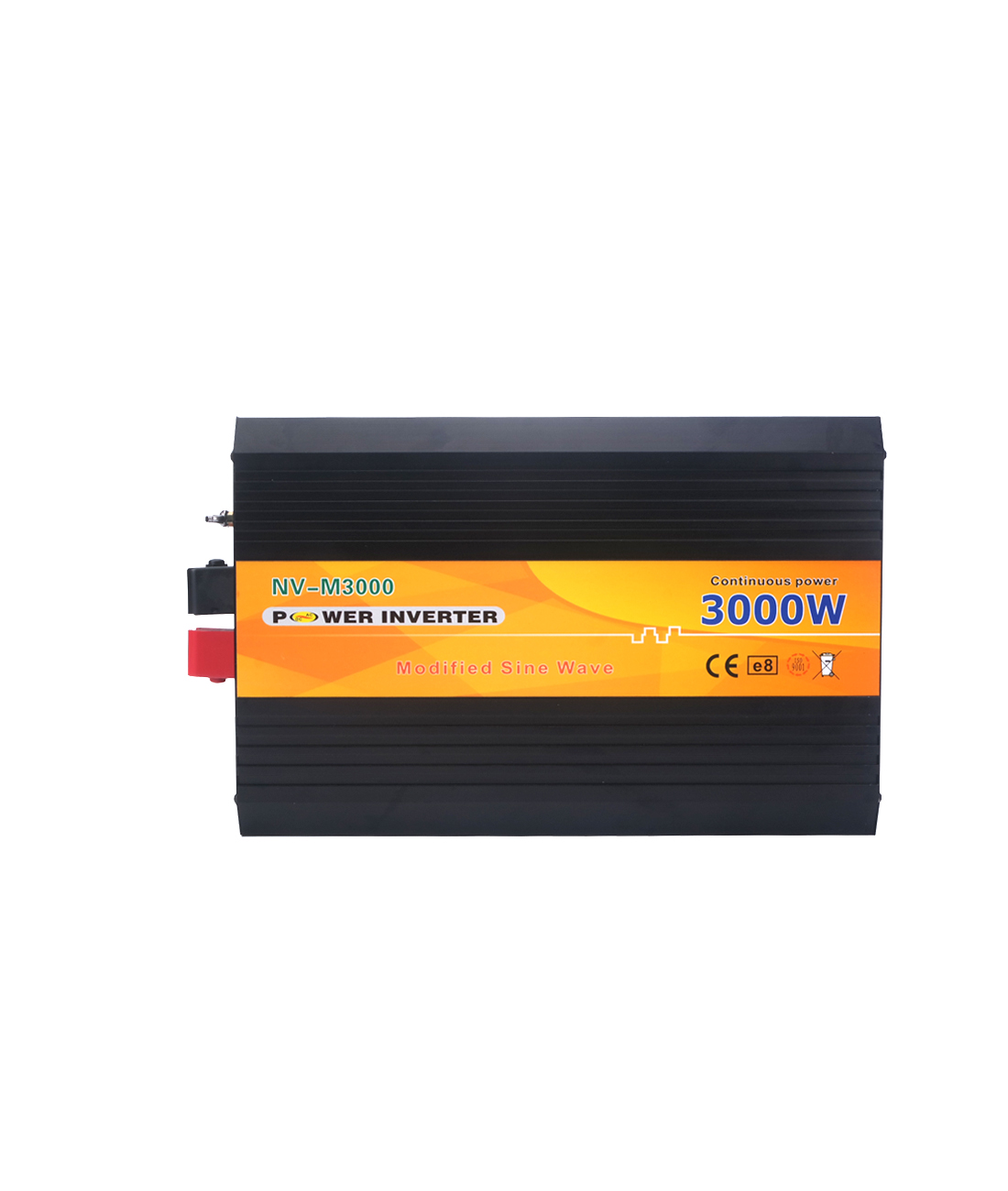

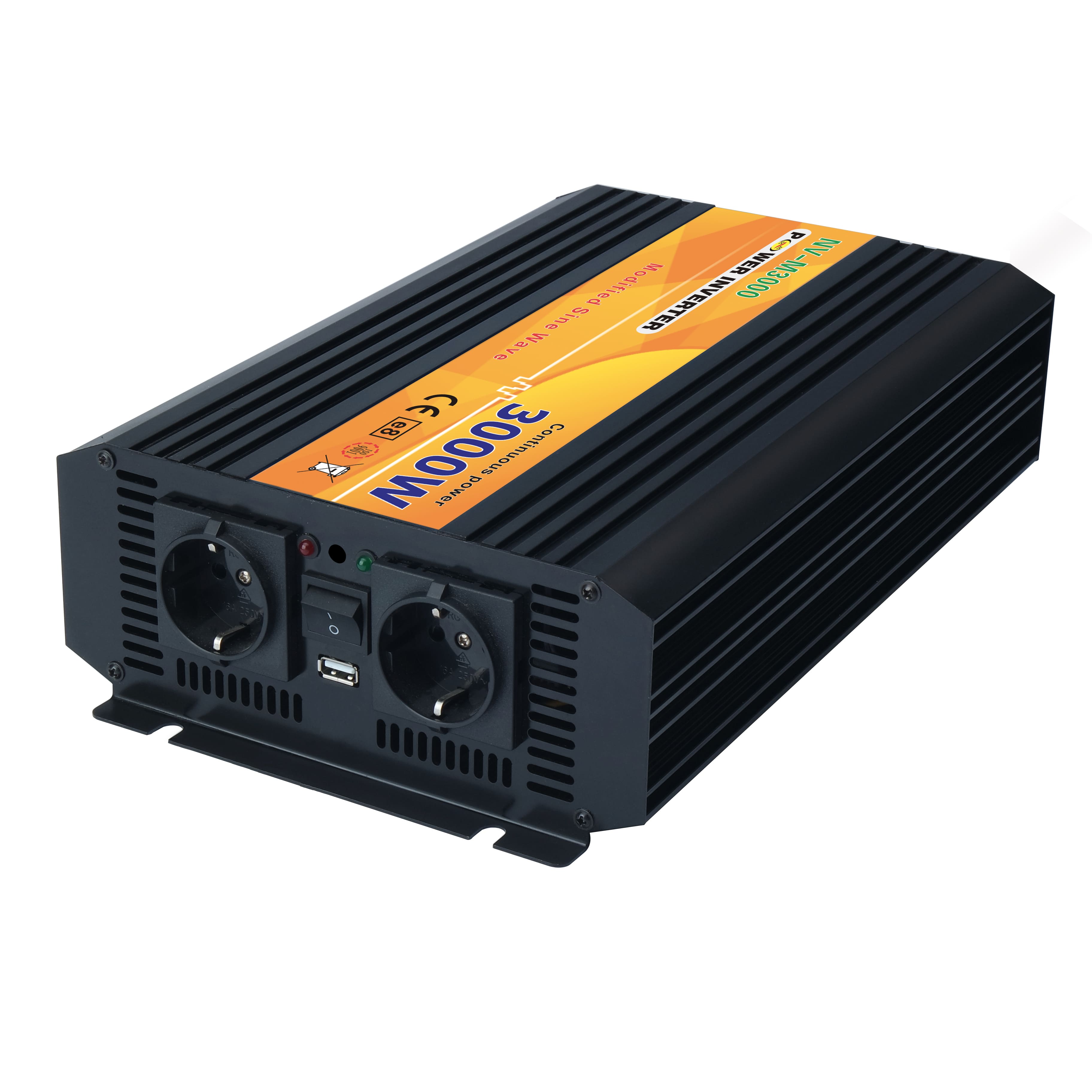

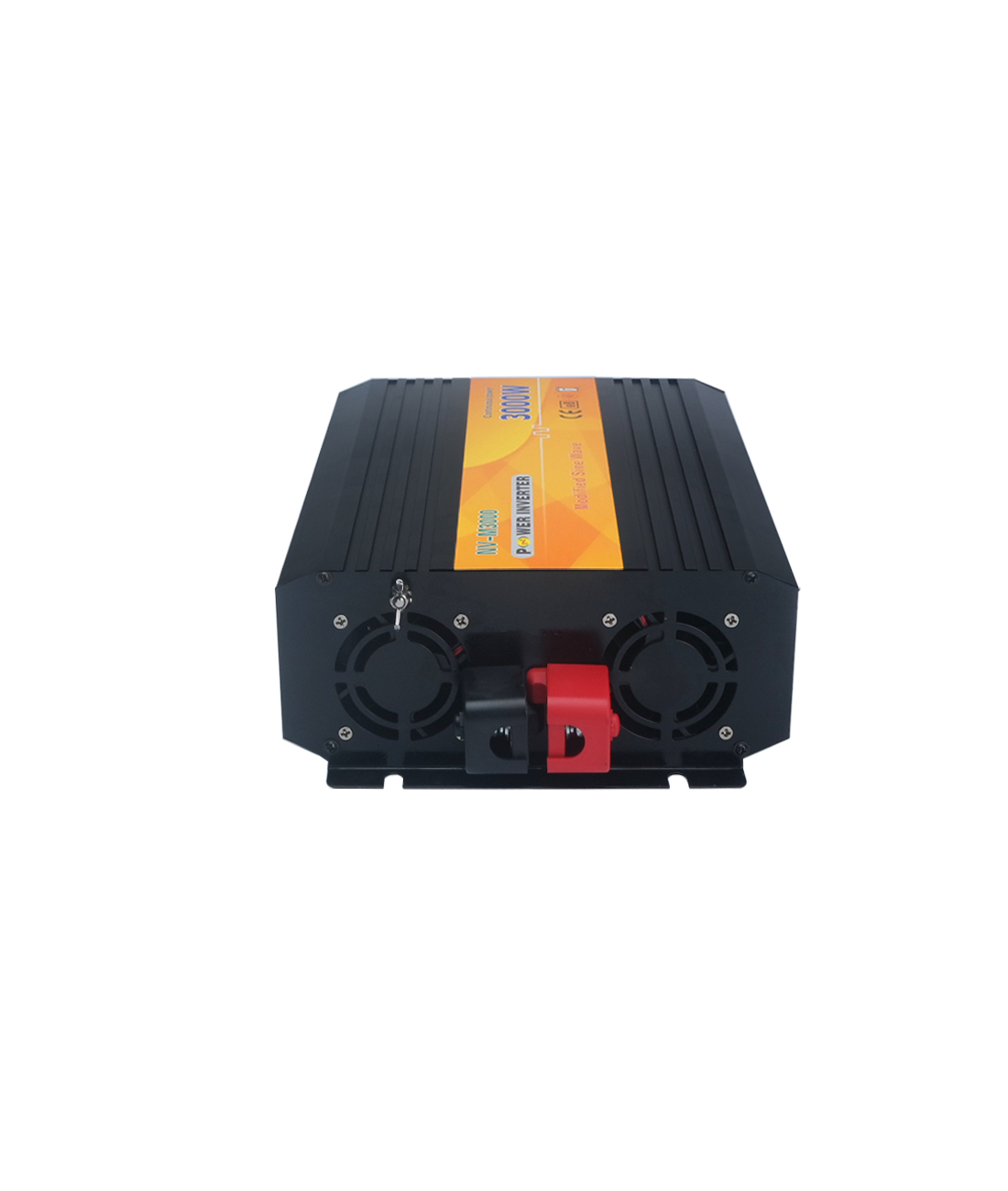

Product Display
Modified sine wave inverters are widely used in off-grid and backup power systems due to their affordability and efficiency. They are suitable for powering resistive loads like incandescent lights, heaters, and basic appliances. However, they can also run some inductive loads, such as refrigerators and motors, though with reduced efficiency and potential noise.
These inverters are common in RVs, boats, and solar power setups where cost is a priority over precision. They are not ideal for sensitive electronics (e.g., medical devices, laptops) due to harmonic distortion, which may cause overheating or malfunctions. Despite limitations, their rugged design makes them reliable for tools, pumps, and emergency lighting in remote areas.
010203
NV-P SERIESTECHNICAL PARAMETE
DC Operating Voltage: 12V/24V/48Vdc
Output Voltage: 110V/120V/220V/240Vac
Operating Frequency: 50Hz/60Hz
Range Of Power: 300W ~ 6000W
